Testina Epson i3200

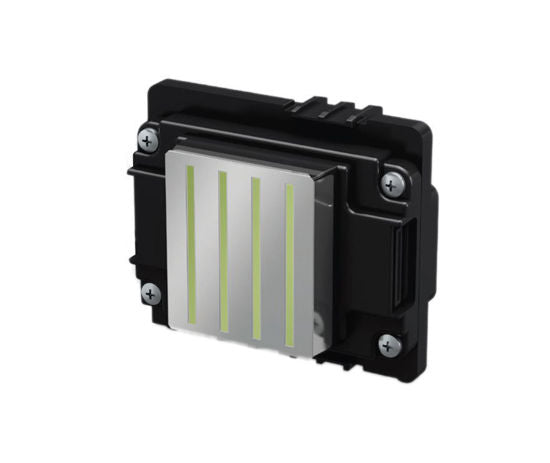

Epson I3200-A1 (4) Series Printhead - I3200-A1

• Ink Type : Aqueous
• Type : PrecisionCore MicroTFP printhead

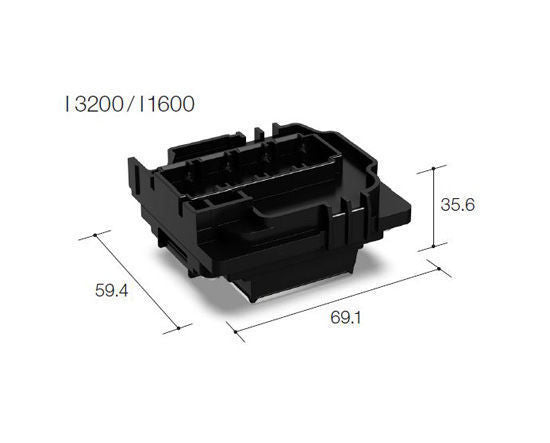

• Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
• Weight : 82g
• Number of nozzle : 3200

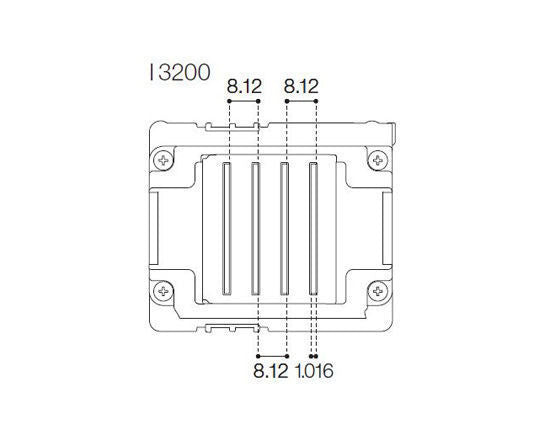

• Nozzle pitch/nozzle row : 1/300 inch
• Nozzle rows: 8 rows
• Nozzle Resolution : 300 noi/row 600 npi/2 rows
• Max. number of colour inks : 4 colours
• Effective print width : 33.8 mm (1.33 inches)
• Droplet ejection performance :
  Binary : 6 plat 43.2 kHz
  3 levels grey scale : 6.3, 12.3 pl at 21.6 kHz
  4 levels grey scale 3.8, 6.1, 9.4 pl at 21.6 kHz
• Viscosity range : 3-4 mPa·s
• Country of origin : Japan
